Kev piav qhia
Epoxy series yog BPA-hom khoom epoxy resin. Nws qhov hnyav molecular: nruab nrab ntawm adhesion thiab zoo heev hluav taws xob rwb thaiv tsev.The Electrophoretic Lacquer Epoxy Txheej yog BPA khoom epoxy resin nrog ib qho hnyav molecular ntawm 1500-2000 thiab yog khoom ntawm chav tsev kub. Nws muaj kev ruaj ntseg zoo heev, muaj zog adhesion thiab zoo heev hluav taws xob rwb thaiv tsev
Epoxy Clear Lacquer yog ib qho uas tsis yog-flammable topcoat, uas muab cov adhesion zoo rau ntau qhov chaw, nrog rau cov xim pleev xim. Cov khoom no yog tsim los siv rau qhov uas cov kuab tshuaj tsis raug tso cai vim kev noj qab haus huv thiab kev nyab xeeb. Cov txheej muaj qhov ua tau zoo rau cov tshuaj me me thiab cov kuab tshuaj tsis muaj zog. Cov khoom siv tuaj yeem siv los ua lub tsho barier thaum hloov rom ib qho xim rau lwm qhov.
Electro Txheej yog dab tsi?
E-txheej txheej yog txheej txheem ntub dej ntub dej tiav uas siv hluav taws xob tam sim no los nyiam cov xim pleev xim rau cov hlau nto. Cov txheej txheem no kuj raug hu ua xim deposition. Cov txheej txheem E-coat yog dipping (immersion) system zoo ib yam li cov khoom siv hauv cov hlau plating tshwj tsis yog qhov ua tiav siv cov xim pleev xim tsis yog hlau hauv cov dej da dej.
E-Coating ua haujlwm li cas?
Kev siv hluav taws xob txheej siv cov xim pleev xim rau hauv cov dej da dej. Ib qho kev them nyiaj rov qab yog qis dua rau hauv cov xim da dej thiab cov xim pleev xim yog kos rau ntawm cov hlau. Cov xim pleev xim ua rau ntawm txhua qhov chaw ntawm cov hlau los ua ib qho kev sib tw, tsis tu ncua, qis-profile zaj duab xis hla tag nrho saum npoo. Cov txheej txheem no txuas ntxiv mus txog thaum xav tau zaj duab xis thickness. Zaj duab xis thickness yog tswj los ntawm tus nqi ntawm qhov sib txawv voltage thov. Qhov siab dua qhov voltage, qhov tuab ntawm zaj duab xis tsim.
Ua haujlwm ntawm lub hauv paus ntsiab lus uas qhov sib txawv nyiam, Electrophoretic Lacquer Epoxy Txheej txheej txheem siv cov khoom siv hluav taws xob rau cov hlau, lossis cov kua dej hauv lub tank immersion. Cov xim yog nyiam los ntawm ib qho los yog lwm qhov yog grounded. Cov txheej txheem tuaj yeem ua tau ob qho tib si, txawm li cas los xij muaj cov txiaj ntsig ntawm qhov muaj feem hauv av (-) thiab tus nqi siv rau kev daws teeb meem (ntxiv rau ) vs. muaj cov khoom (ntxiv rau ) zoo them thiab lub tank tov tuav (-) tsis zoo. nqi. Nyob ntawm qhov polarity ntawm tus nqi, ob qho tib si anodic lossis cathodic txoj kev tuaj yeem siv rau e-txheej txheej.
Daim ntawv thov
Thermosetting hmoov txheej, anti-corrosion txheej, thiab lwm yam, yog dav siv nyob rau hauv tshuaj tiv thaiv, hluav taws xob thiab hluav taws xob khoom, civil engineering thiab machinery manufacturing thiab lwm yam kev lag luam.
Parameter Sib piv Table
|
Code |
Qhov tshwm sim |
Epoxy sib npaug（g/Eq） |
Epoxide naj npawb（yog '/ 100 g） |
Softening point(degree) |
Solubility Viscosity（CPS/25degree) |
(Xim) Gardner＃ Tsawg dua lossis sib npaug |
|

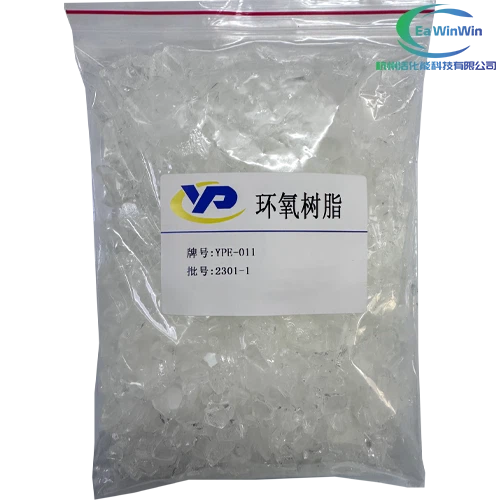

YPE-011 |
Dawb los yog yellowish flake khoom |
450~500 |
0.200~0.222 |
60~70 |
D~F |
1 |
|
YPE-011T |
Dawb los yog yellowish flake khoom |
450~500 |
0.200~0.222 |
65~75 |
D~F |
1 |
|
YPE-011P |
Dawb los yog yellowish flake khoom |
450~500 |
0.200~0.222 |
60~70 |
D~F |
1 |
|
YPE-011H |
Dawb los yog yellowish flake khoom |
500~550 |
0.182~0.200 |
65~75 |
E~G |
1 |
Cov txiaj ntsig:
Superior Corrosion Resistance
Uniform, txawm lub tsho loj
Environmentally Friendly
Electrophoretic Lacquer Epoxy Txheej yog ib puag ncig tus phooj ywg. Ntau lub tuam txhab siv e-coat vim tias cov txheej txheem electrocoat tsim me me los yog tsis muaj HAPS (Hazardous Air pollutants), VOCs (Volatile Organic Compounds), thiab yog RoHS, OSHA thiab EPA raws.
Muaj txiaj ntsig
Zoo tag nrho cov xim tsis siv tau zoo zoo. Feem ntau cov kab muaj 2 tab sis qee qhov muaj 3 cov ntawv yaug kom tshem tawm cov xim uas seem tshuav. Cov ntawv rinses yog tshaj li lim thiab cov xim uas sau rau hauv cov theem yaug yog rov qhia rov qab rau hauv daim ntawv thov da dej. Feem ntau e-coat systems yog automated, tus nqi ntawm cov xim siv rau ib yam khoom muaj peev xwm tswj tau precisely, yielding tsawg kawg nkaus pov tseg tsis zoo li hmoov los yog xim overspray.
Kab ceev
Txhua txoj kab sib txawv, tab sis nrog rau qhov tseeb engineering nws muaj peev xwm ua rau lub tsho tiv no ntau yam lossis cov khoom uas tuaj yeem dai ib zaug. Qhov no yog raws li tag nrho cov square footage yuav tsum tau coated ib zaug. Nyob ntawm seb lub tank loj npaum li cas, tus naj npawb ntawm cov anodes yuav tsum tau muab tso rau hauv kev txiav txim rau lub tank kom npog qhov siab tshaj plaws ntawm thaj chaw uas xav tau. Tsuav qhov chaw tsis txhob kov, tag nrho lub tank tuaj yeem ntim nrog cov khoom. Racking yog ib qho tseem ceeb heev rau tag nrho cov kab efficiency.
Kev sib haum xeeb.
Lub peev xwm los muab kev sib cuam tshuam zoo heev nrog rau feem ntau topcoats tso cai rau cov txheej txheem no siv los ua primer rau yuav luag txhua daim ntawv thov ferrous.
E-coat ua rau cov khoom siv ntev dua.
Cov neeg tsim khoom xaiv electrocoating los muab lawv cov khoom siv nrog cov khoom siv ruaj khov, ntev ntev uas yuav sawv ntsug rau qhov chaw sab nraum zoov xws li dej thiab hnub ci lossis qhov chaw sab hauv tsev xws li tshuaj siv hauv koj chav ntxhua khaub ncaws. Electrocoat yog cov cuab yeej siv thoob ntiaj teb kom ua tiav cov txiaj ntsig zoo, tus nqi qis ntawm kev ua tau zoo thiab kev ua raws li ib puag ncig tsis muaj lwm txoj kev ua tiav. Qhov zoo ntawm kev ua tau zoo, nrog rau kev txo cov nqi tiav, tau ua rau nws loj hlob technology uas yuav txuas ntxiv mus ntev mus rau yav tom ntej raws li kev siv tshiab thiab thev naus laus zis tau tsim.
